what is ipsec and why does it matter for your online privacy? When you connect to public Wi-Fi or send sensitive data over the internet, you need a robust IPSec VPN solution to keep eavesdroppers at bay. In this guide, we’ll unpack the protocol IPSec, explain its key components, compare it to modern alternatives like WireGuard, and show how UFO VPN uses IPSec’s AES-256 encryption to shield your IP during sensitive transactions—no more coffee shop snoopers.

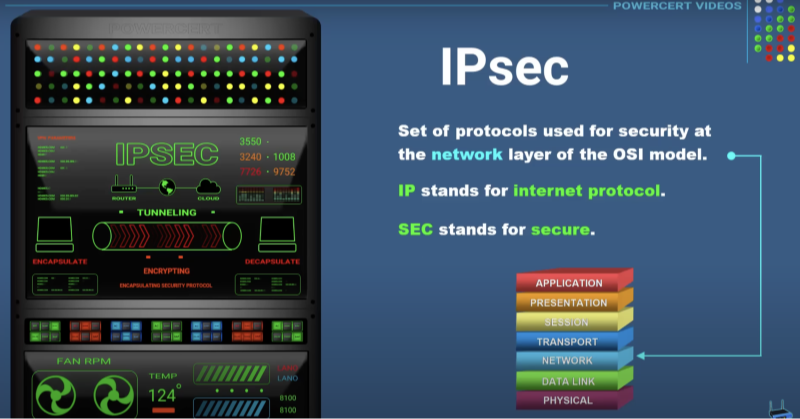

IPSec Overview

ipsec overview

IPSec (Internet Protocol Security) is a suite of protocols designed to secure Internet Protocol (IP) communications by authenticating and encrypting each IP packet in a data stream. It operates at the network layer (Layer 3 of the OSI model), making it agnostic to applications and capable of securing any IP-based traffic.

Key uses of IPSec include:

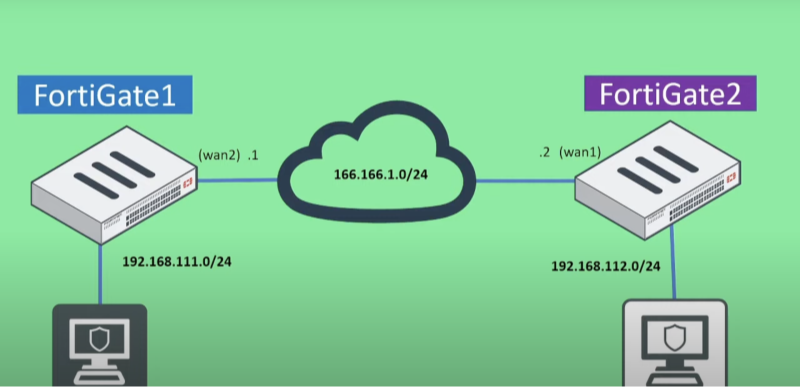

  • Site-to-Site VPNs: Connecting entire networks securely over the internet.

  • Remote Access VPNs: Securely linking individual clients (laptops, smartphones) to corporate networks.

  • Secure Host-to-Host Communications: Protecting direct server-to-server data transfers.

Because IPSec is standardized by the IETF and supported by most operating systems and network devices, it remains a cornerstone of enterprise and consumer VPN solutions.

How IPSec Works: Core Components

how ipsec works

IPSec’s functionality hinges on two main protocols and a set of cryptographic algorithms:

1. Authentication Header (AH)

  • Purpose: Provides data integrity and authentication for IP packets by calculating an HMAC (hash-based message authentication code) over the packet’s payload and selected header fields.

  • Limitation: Does not encrypt content—only verifies authenticity and integrity.

2. Encapsulating Security Payload (ESP)

  • Purpose: Encrypts the IP packet’s payload (and optionally the header), providing confidentiality, integrity, and authenticity via AES, 3DES, or ChaCha20.

  • Common Algorithms:

    • AES-256-GCM: Combines encryption and integrity in a single efficient step.

    • AES-256-CBC + HMAC-SHA2: Uses separate encryption and integrity operations.

3. Security Associations (SAs)

  • Definition: One-way, unidirectional connections with their own set of parameters (encryption algorithm, keys, lifetime).

  • Management: IPSec defines two modes to establish SAs:

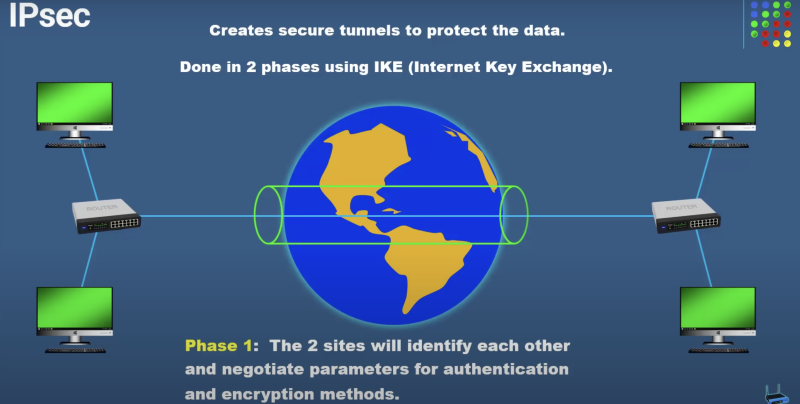

    • IKEv1 / IKEv2 (Internet Key Exchange): Protocols for negotiating SAs, performing mutual authentication, and generating session keys.

    • Manual Keying: Rarely used; requires static key configuration, unsuitable for dynamic environments.

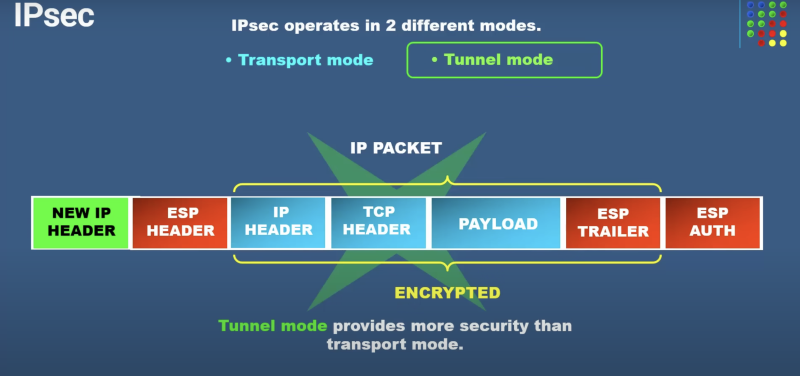

4. Modes of Operation

  • Transport Mode: Only the payload (data) of the IP packet is encrypted/authenticated; the original IP header remains intact. Common for host-to-host.

  • Tunnel Mode: Entire IP packet is encrypted and encapsulated within a new IP packet with a new header. Essential for network-to-network (site-to-site) VPNs.

By combining ESP (for encryption) and AH (for authentication), IPSec ensures data confidentiality, integrity, and authenticity across untrusted networks.


📖Related Reading

IPSec in VPNs: Encryption & Tunneling

ipsec in vpns

In the context of VPNs, IPSec VPN typically refers to using IKEv2 combined with ESP in tunnel mode, offering:

  1. Strong Encryption: AES-256 protects data from eavesdropping.

  2. Perfect Forward Secrecy (PFS): Key material is regularly refreshed so that compromise of one key doesn’t expose past sessions.

  3. Cross-Platform Support: Native on Windows, macOS, iOS, Android, and many routers.

Use Cases

  • Corporate Remote Access: Employees securely connect to internal resources from anywhere.

  • Site-to-Site Links: Offices in different geographies share sensitive traffic seamlessly.

  • Consumer Privacy: General users secure their internet traffic on public Wi-Fi.

Despite its age, IPSec remains relevant thanks to its flexibility and extensive vendor support.

IPSec vs. WireGuard: Which to Use?

ipsec vs. wireguard

While IPSec is battle-tested, WireGuard has emerged as a modern VPN protocol. Here’s how they compare, particularly for UFO VPN users:

Feature IPSec WireGuard
Codebase Size ~600,000 lines (complex)  ~4,000 lines (minimal, auditable)
Performance Good, but heavier CPU due to negotiation Excellent, lower latency, faster tunnels
Key Management IKEv2 with complex setup Public-key based, simpler
NAT Traversal Built-in via NAT-T  Requires workaround (UDP hole punching)
Mobile Roaming IKEv2 supports seamless reconnections Roaming support improving
Security Model Mature, widely audited Newer, actively audited

When to Choose Which

  • Choose IPSec if you need:

    • Enterprise compatibility and integration with existing VPN infrastructure.

    • Native support on older devices or routers.

    • Fine-grained policy control via Security Policies (SPDs).

  • Choose WireGuard if you need:

    • Blazing performance for gaming and video streaming.

    • Simple configuration and easier key management.

    • Rapid adoption for personal VPN usage.

At UFO VPN, we offer both protocols: IPSec for maximum compatibility and WireGuard for the speed-obsessed. Our apps auto-select the optimal protocol based on your network environment.

Common IPSec Configuration Errors

ipsec confighration errors

Even seasoned admins can trip over IPSec’s complexity. Avoid these pitfalls:

  1. Mismatched Encryption Settings

    • Ensure both ends use the same algorithms (e.g., AES-256-GCM) and key lifetimes.

  2. Incorrect Subnet Overlaps

    • Don’t use overlapping local subnets; traffic may route internally instead of through the tunnel.

  3. NAT-T Misconfiguration

    • If behind NAT, enable NAT Traversal (NAT-T) on both peers to encapsulate ESP in UDP/4500.

  4. Clock Skew

    • IKE depends on timestamp validation. Keep device clocks in sync via NTP.

  5. Firewall Blocking ESP/AH

    • Allow UDP 500 (IKE), UDP 4500 (NAT-T), and protocol 50 (ESP) / 51 (AH) in firewalls.

  6. Expired Certificates or Pre-Shared Keys

    • Monitor certificate validity and rotate PSKs periodically to avoid unexpected rejections.

By double-checking these areas, you’ll ensure a smooth IPSec VPN deployment.

Integrating IPSec in Best free VPN

At UFO VPN, we leverage IPSec to provide:

  • AES-256-GCM Encryption: Industry-standard confidentiality and integrity.

  • IKEv2 Key Exchange: Rapid, secure session establishment—ideal for mobile roaming.

  • Obfuscated Servers: Hide VPN usage to bypass strict censorship (e.g., public Wi-Fi hotspots).

  • Cross-Platform Clients: One-click IPSec setup on Windows, macOS, Android, and iOS—no manual configuration needed.

UFO VPN uses IPSec’s AES-256 encryption to shield your IP during sensitive transactions — no more coffee shop snoopers.” Whether you’re banking, streaming, or gaming, our IPSec implementation keeps your data locked down.

Best Practices for IPSec Deployment

  1. Use IKEv2 with Mobility Support: Ensures stable connections when switching networks.

  2. Rotate Keys Regularly: Prevents long-term key compromise.

  3. Enable Perfect Forward Secrecy: Combine Diffie-Hellman groups (e.g., DH14, DH19).

  4. Monitor Logs for Errors: Automated alerts for failed negotiations or rekey events.

  5. Test Failover Scenarios: Ensure site-to-site tunnels reestablish after link failure.

Adhering to these practices helps maintain a robust, secure IPSec VPN environment.

FAQ

Q: What is IPSec used for?
IPSec secures IP traffic by authenticating and encrypting each packet. It’s the backbone of site-to-site and remote-access VPNs.

Q: How secure is IPSec VPN compared to other protocols?
When configured with AES-256-GCM and IKEv2, IPSec offers strong, industry-backed security. While WireGuard can be faster, IPSec’s mature ecosystem and fine-grained controls make it equally reliable.

Q: Can I configure IPSec manually on my device?
Yes—most OSs support manual IPSec/IKEv2 setup via native VPN settings. However, using UFO VPN automates the process and applies optimal security settings without manual errors.

Q: Why does my IPSec tunnel keep dropping?
Common causes include NAT-T issues, expired keys, clock skew, or aggressive firewall rules. Check logs for IKE rekey failures and ensure UDP ports 500/4500 and protocol 50 (ESP) are allowed.

Q: Is IPSec VPN legal?
Yes, in most jurisdictions. However, bypassing geo-restrictions may violate service terms. Always comply with local laws and service agreements.

❤️Pro Tips ❤️

UFO VPN prioritizes your privacy by blocking ISPs, advertisers, and cybercriminals from harvesting data about your device or habits. Recognized as the best VPN for PC and best VPN for Mac, its advanced encryption anonymizes your connection, ensuring activities like visiting onion sites never reveal your hardware specs, browser fingerprints, or real IP address.

With one-click activation, UFO VPN simplifies security—no technical expertise needed. Start shielding your data by using best VPN for PC and browse with uncompromised confidence.

Conclusion

Understanding what is IPSec and its role in IPSec VPN technology is crucial for securing modern networks. While protocol IPSec provides robust encryption and compatibility, emerging alternatives like WireGuard offer compelling advantages in performance and simplicity. Whether you opt for IPSec or WireGuard, UFO VPN delivers both—shielding your IP with AES-256 encryption, evading censorship, and ensuring rock-solid privacy. By avoiding common configuration errors and following best practices, you can deploy a secure VPN setup in 2025 that keeps your data safe on any network.
